Data validation in Excel controls what types of information can be entered into a cell. Using it, you can restrict only specific data types such as numbers or dates to be in a cell, or limit numbers to a certain range and text to a certain length. In addition, it also allows you to present a list of predefined values in a drop-down menu for users to choose from. In this article, you will learn how to apply or remove data validation in Excel in C++ using Spire.XLS for C++.
Install Spire.XLS for C++
There are two ways to integrate Spire.XLS for C++ into your application. One way is to install it through NuGet, and the other way is to download the package from our website and copy the libraries into your program. Installation via NuGet is simpler and more recommended. You can find more details by visiting the following link.
Integrate Spire.XLS for C++ in a C++ Application

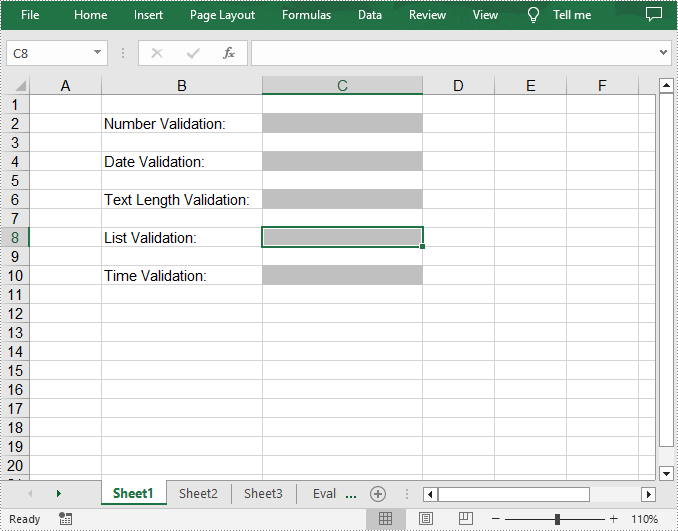

Apply Data Validation to Excel Cells in C++
Spire.XLS for C++ allows you to create validation rules for numbers, dates, text values, lists, etc. The following are the steps to apply different data validation types to specified cells in Excel.
- Create a Workbook object.
- Get a specified worksheet using Workbook->GetWorksheets()->Get() method.
- Get a specific cell using Worksheet->GetRange() method.
- Set the data type allowed in the cell using CellRange->GetDataValidation()->SetAllowType() method. You can select different data type such as Decimal, Time, Date, TextLength and Integer.
- Set the comparison operator using CellRange->GetDataValidation()->SetCompareOperator() method. The comparison operators include Between, NotBetween, Less, Greater, and Equal.
- Set one or two formulas for the data validation using CellRange->GetDataValidation()->SetFormula1() and CellRange->GetDataValidation()->SetFormula2() methods.
- Set the input prompt using CellRange->GetDataValidation()->SetInputMessage() method.
- Set the error message using CellRange->GetDataValidation()->SetErrorMessage() method.
- Set to show the error alert and set its alert style when invalid data is entered.
- Save the result document using Workbook->SaveToFile() method.
- C++
#include "Spire.Xls.o.h";
using namespace Spire::Xls;
int main() {
//Specify the output file
std::wstring outputFile = L"DataValidation.xlsx";
//Create a Workbook object
intrusive_ptr<Workbook> workbook = new Workbook();
//Get the first worksheet
intrusive_ptr<Worksheet> sheet = dynamic_pointer_cast<Worksheet>(workbook->GetWorksheets()->Get(0));
//Insert text in specified cells
dynamic_pointer_cast<CellRange>(sheet->GetRange(L"B2"))->SetText(L"Number Validation: ");
dynamic_pointer_cast<CellRange>(sheet->GetRange(L"B4"))->SetText(L"Date Validation: ");
dynamic_pointer_cast<CellRange>(sheet->GetRange(L"B6"))->SetText(L"Text Length Validation: ");
dynamic_pointer_cast<CellRange>(sheet->GetRange(L"B8"))->SetText(L"List Validation: ");
dynamic_pointer_cast<CellRange>(sheet->GetRange(L"B10"))->SetText(L"Time Validation: ");
//Add a number validation to C2
intrusive_ptr<CellRange> rangeNumber = dynamic_pointer_cast<CellRange>(sheet->GetRange(L"C2"));
rangeNumber->GetDataValidation()->SetAllowType(CellDataType::Decimal);
rangeNumber->GetDataValidation()->SetCompareOperator(ValidationComparisonOperator::Between);
rangeNumber->GetDataValidation()->SetFormula1(L"3");
rangeNumber->GetDataValidation()->SetFormula2(L"6");
rangeNumber->GetDataValidation()->SetInputMessage(L"Enter a number between 1 and 10");
rangeNumber->GetDataValidation()->SetErrorMessage(L"Please input correct number!");
rangeNumber->GetDataValidation()->SetShowError(true);
rangeNumber->GetDataValidation()->SetAlertStyle(AlertStyleType::Warning);
rangeNumber->GetStyle()->SetKnownColor(ExcelColors::Gray25Percent);
//Add a date validation to C4
intrusive_ptr<CellRange> rangeDate = dynamic_pointer_cast<CellRange>(sheet->GetRange(L"C4"));
rangeDate->GetDataValidation()->SetAllowType(CellDataType::Date);
rangeDate->GetDataValidation()->SetCompareOperator(ValidationComparisonOperator::Between);
rangeDate->GetDataValidation()->SetFormula1(L"1/1/2021");
rangeDate->GetDataValidation()->SetFormula2(L"12/31/2021");
rangeDate->GetDataValidation()->SetInputMessage(L"Enter a date between 1/1/2021 and 12/31/2021");
rangeDate->GetStyle()->SetKnownColor(ExcelColors::Gray25Percent);
//Add a text length validation to C6
intrusive_ptr<CellRange> rangeTextLength = dynamic_pointer_cast<CellRange>(sheet->GetRange(L"C6"));
rangeTextLength->GetDataValidation()->SetAllowType(CellDataType::TextLength);
rangeTextLength->GetDataValidation()->SetCompareOperator(ValidationComparisonOperator::LessOrEqual);
rangeTextLength->GetDataValidation()->SetFormula1(L"5");
rangeTextLength->GetDataValidation()->SetErrorMessage(L"Enter a Valid String!");
rangeTextLength->GetDataValidation()->SetShowError(true);
rangeTextLength->GetDataValidation()->SetAlertStyle(AlertStyleType::Stop);
rangeTextLength->GetStyle()->SetKnownColor(ExcelColors::Gray25Percent);
//Apply a list validation to C8
intrusive_ptr<CellRange> rangeList = dynamic_pointer_cast<CellRange>(sheet->GetRange(L"C8"));
std::vector<LPCWSTR_S> files = { L"United States", L"Canada", L"United Kingdom" };
rangeList->GetDataValidation()->SetValues(files);
rangeList->GetDataValidation()->SetIsSuppressDropDownArrow(false);
rangeList->GetDataValidation()->SetInputMessage(L"Choose an item from the list");
rangeList->GetStyle()->SetKnownColor(ExcelColors::Gray25Percent);
//Apply a time validation to C10
intrusive_ptr<CellRange> rangeTime = dynamic_pointer_cast<CellRange>(sheet->GetRange(L"C10"));
rangeTime->GetDataValidation()->SetAllowType(CellDataType::Time);
rangeTime->GetDataValidation()->SetCompareOperator(ValidationComparisonOperator::Between);
rangeTime->GetDataValidation()->SetFormula1(L"9:00");
rangeTime->GetDataValidation()->SetFormula2(L"12:00");
rangeTime->GetDataValidation()->SetInputMessage(L"Enter a time between 9:00 and 12:00");
rangeTime->GetStyle()->SetKnownColor(ExcelColors::Gray25Percent);
//Auto fit width of column 2
sheet->AutoFitColumn(2);
//Set the width of column 3
sheet->GetColumns()->GetItem(2)->SetColumnWidth(20);
//Save the result document
workbook->SaveToFile(outputFile.c_str(), ExcelVersion::Version2016);
workbook->Dispose();
}
Remove Data Validation from Excel Cells in C++
To remove data validation applied to the cells, Spire.XLS for C++ provides the Worksheet->GetDVTable()->Remove() method. The following are the detailed steps.
- Create a Workbook object.
- Load a sample Excel document containing data validation using Workbook->LoadFromFile() method.
- Get a specified worksheet using Workbook->GetWorksheets()->Get() method.
- Create an array of rectangles, which is used to locate the cells where the validation will be removed.
- Remove the data validation from the selected cells using Worksheet->GetDVTable()->Remove() method.
- Save the result document using Workbook->SaveToFile() method.
- C++
#include "Spire.Xls.o.h";
using namespace Spire::Xls;
int main() {
//Specify the input and output files
std::wstring inputFile = L"DataValidation.xlsx";
std::wstring outputFile = L"RemoveDataValidation.xlsx";
//Create a Workbook object
intrusive_ptr<Workbook> workbook = new Workbook();
//Load a sample Excel document from disk
workbook->LoadFromFile(inputFile.c_str());
//Get the first worksheet
intrusive_ptr<Worksheet> sheet = dynamic_pointer_cast<Worksheet>(workbook->GetWorksheets()->Get(0));
//Create an array of rectangles, which is used to locate the ranges in worksheet
std::vector<intrusive_ptr<Spire::Common::Rectangle>> rectangles(1);
//Assign value to the first element of the array. A rectangle specifies a cell range
rectangles[0] = Spire::Common::Rectangle::FromLTRB(0, 0, 2, 9);
//Remove validations in the ranges represented by rectangles
sheet->GetDVTable()->Remove(rectangles);
//Save the result document
workbook->SaveToFile(outputFile.c_str(), ExcelVersion::Version2016);
workbook->Dispose();
}
Apply for a Temporary License
If you'd like to remove the evaluation message from the generated documents, or to get rid of the function limitations, please request a 30-day trial license for yourself.
