A picture in Excel is more than decoration. Put a logo or a product shot on a worksheet and give it a hyperlink, and the file stops being a plain description and becomes something a reader can click through. A picture is not a cell, though, and its hyperlink lives on the picture object, so both setting and reading one go through the worksheet's picture collection rather than its cell hyperlink collection. Spire.XLS for JavaScript does this in the browser on WebAssembly, handling input and output files through a virtual file system (VFS) with no backend service.
This article covers two core feature points:
For installation and project setup, see Integrating Spire.XLS for JavaScript in a React Project. The examples below assume Spire.XLS is installed and the WebAssembly module has been initialised.
Set a hyperlink on a picture
Setting a hyperlink on a picture is what turns it into a clickable entry point: a reader who clicks the picture on the worksheet opens the address it points at. The link belongs to the picture itself rather than to a cell, so the picture object has to be taken from the worksheet's picture collection first, and the address handed to that object. The steps are:
- Load the font, the picture and the test data file into the VFS.
- Load the workbook with
workbook.LoadFromFile. - Insert the picture into the space left for it with
sheet.Pictures.Add. - Set the hyperlink on the picture with
picture.SetHyperLink, passingtrueas the second argument. - Save the workbook with
workbook.SaveToFile. - Dispose of the workbook with
workbook.Disposeto free resources.
The complete code example below shows how to set a hyperlink on a picture in Excel in React:
function App() {
const pictureHyperlink = async () => {
// get the Spire.XLS WASM module
const xlsModule = window.wasmModule?.spirexls;
// check that the module is ready
if (!xlsModule) {
alert('Spire.Xls is not ready yet');
return;
}
// load the font, the picture and the test data file into the VFS
await window.spire.FetchFileToVFS('ARIAL.TTF', '/Library/Fonts/', `${process.env.PUBLIC_URL}/font/`);
await window.spire.FetchFileToVFS('logo.png', '', `${process.env.PUBLIC_URL}data/`);
const inputFileName = 'PictureLink.xlsx';
await window.spire.FetchFileToVFS(inputFileName, '', `${process.env.PUBLIC_URL}data/`);
// load the workbook
const workbook = new xlsModule.Workbook();
workbook.LoadFromFile({ fileName: inputFileName });
// take the first worksheet and drop the picture into the space left for it
const sheet = workbook.Worksheets.get(0);
const picture = sheet.Pictures.Add({ topRow: 10, leftColumn: 1, fileName: 'logo.png' });
// set the hyperlink on the picture; the second argument being true means it points outside the workbook
picture.SetHyperLink('https://www.e-iceblue.com/Misc/about-us.html', true);
// save the workbook
const outputFileName = 'PictureHyperlink.xlsx';
workbook.SaveToFile({ fileName: outputFileName, fileFormat: xlsModule.FileFormat.Version2010 });
// dispose of the workbook to free resources
workbook.Dispose();
// read the result file from the VFS and start the download
const fileArray = window.dotnetRuntime.Module.FS.readFile(outputFileName);
const blob = new Blob([fileArray], { type: 'application/vnd.openxmlformats-officedocument.spreadsheetml.sheet' });
const url = URL.createObjectURL(blob);
const a = document.createElement('a');
a.href = url;
a.download = outputFileName;
a.click();
URL.revokeObjectURL(url);
};
return (
<div style={{ textAlign: 'center', height: '300px' }}>
<h1>Add Hyperlinks to Pictures in Excel</h1>
<button id="picture-hyperlink" onClick={pictureHyperlink}>Set a hyperlink on the picture</button>
</div>
);
}
export default App;

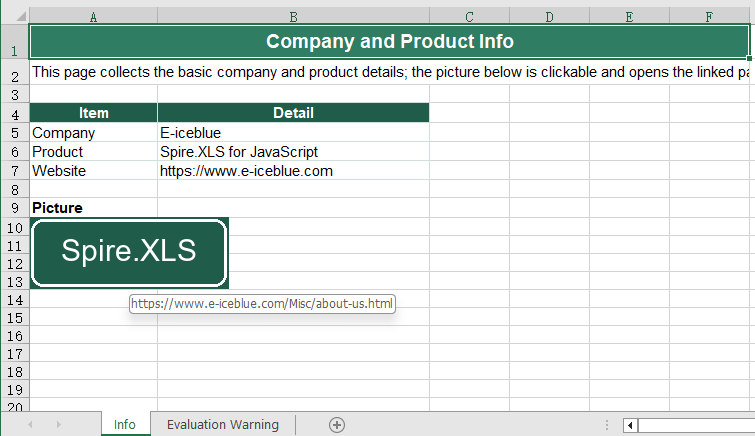

After running, the effect of setting a hyperlink on a picture:
Read the hyperlink from a picture
Reading the hyperlink off a picture is how a finished workbook is checked over: whether the links are all there, and whether they point at the right addresses. The addresses that come back are written out as a text file, which makes them easy to line up against a list of links. Picture hyperlinks are not kept in the cell hyperlink collection, so the pictures have to be taken from the worksheet one by one, and each one asked for its own link object. The steps are:
- Load the font and the test data file into the VFS.
- Load the workbook with
workbook.LoadFromFile. - Take the picture count from
sheet.Pictures.Countand walk every picture on the worksheet with it. - Take this picture's hyperlink object with
picture.GetHyperLink. - Read the target address from the link object's
Address, collecting the addresses as you go. - Write the collected addresses into a text file with
FS.writeFile, one address per line. - Dispose of the workbook with
workbook.Disposeto free resources.
The complete code example below shows how to read the hyperlink from a picture in Excel in React:
function App() {
const readPictureHyperlink = async () => {
// get the Spire.XLS WASM module
const xlsModule = window.wasmModule?.spirexls;
// check that the module is ready
if (!xlsModule) {
alert('Spire.Xls is not ready yet');
return;
}
// load the font and the test data file into the VFS
await window.spire.FetchFileToVFS('ARIAL.TTF', '/Library/Fonts/', `${process.env.PUBLIC_URL}/font/`);
const inputFileName = 'PictureHyperlinks.xlsx';
await window.spire.FetchFileToVFS(inputFileName, '', `${process.env.PUBLIC_URL}data/`);
// load the workbook
const workbook = new xlsModule.Workbook();
workbook.LoadFromFile({ fileName: inputFileName });
// walk the pictures of the worksheet and read the hyperlink off each one
const sheet = workbook.Worksheets.get(0);
const pictures = sheet.Pictures;
const addresses = [];
for (let i = 0; i < pictures.Count; i++) {
const link = pictures.get(i).GetHyperLink();
addresses.push(link.Address);
}
// write the addresses that were read into a text file
const outputFileName = 'ReadPictureHyperlink.txt';
window.dotnetRuntime.Module.FS.writeFile(outputFileName, addresses.join('\n'));
// dispose of the workbook to free resources
workbook.Dispose();
// read the result file from the VFS and start the download
const fileArray = window.dotnetRuntime.Module.FS.readFile(outputFileName);
const blob = new Blob([fileArray], { type: 'text/plain' });
const url = URL.createObjectURL(blob);
const a = document.createElement('a');
a.href = url;
a.download = outputFileName;
a.click();
URL.revokeObjectURL(url);
};
return (
<div style={{ textAlign: 'center', height: '300px' }}>
<h1>Add Hyperlinks to Pictures in Excel</h1>
<button id="read-picture-hyperlink" onClick={readPictureHyperlink}>Read the hyperlink from the picture</button>
</div>
);
}
export default App;

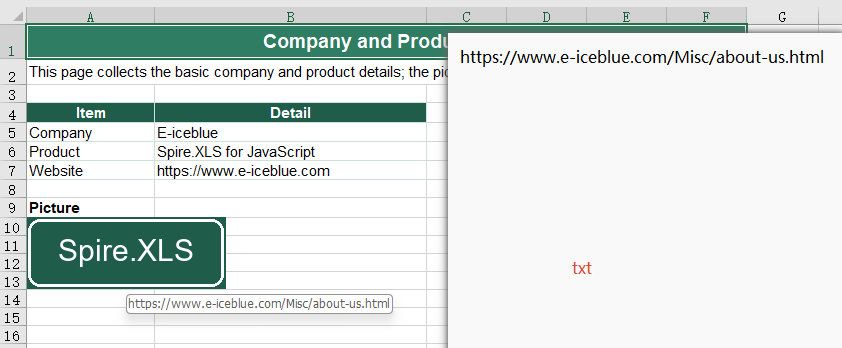

After running, the effect of reading the hyperlink from a picture:
FAQ
Why does a picture's hyperlink not show up in sheet.HyperLinks?
Cause: sheet.HyperLinks collects cell hyperlinks only. A picture is not a cell; it belongs to the worksheet's picture collection, and the link hangs on the picture object itself.
Solution: Go through the picture collection. In this example, after a hyperlink was set on the picture, sheet.HyperLinks.Count was still 0, and it was still 0 after the file was saved and opened again. Read a picture's link with sheet.Pictures.get(i).GetHyperLink(), then read the Address off the link object.
When should the second argument of SetHyperLink be false?
Cause: The second argument of picture.SetHyperLink(address, isExternal) says whether the target lies outside the workbook.
Solution: Pass true for a web page or an external file, and the link type comes out as HyperLinkType.Url; pass false for a position inside the same workbook, write the address as a cell reference such as Sheet1!A1, and the type comes out as HyperLinkType.Workbook. In this example both forms were saved, and after the file was opened again the Address and Type read back matched what had been set.
