Column Charts-Generate Excel Column Chart with C#, VB.NET

Written by  Administrator
Rate this item
(0 votes)
Excel Charts uses graphics to present data information to enable users to analyze data more intuitively. According to details of data information, users need to choose the most appropriate chart type. For example, column chart is suitable for comparison between data, while pie chart is often used to show percentage of each item among all.



Spire.XLS for .NET, a stand-alone Excel operation component designed for .NET developers, allows users to generate Excel chart, and this guide will show you how to generate excel column chart with C#, VB.NET via Spire.XLS for .NET. Users can use sheet.Charts.Add(ExcelChartType) method to add chart in Excel. Then, assign value for DataRange property of Chart class to fill information in chart area. Next, set position, chart title, axes, legend and format them for chart to make the chart be more completed and wonderful.

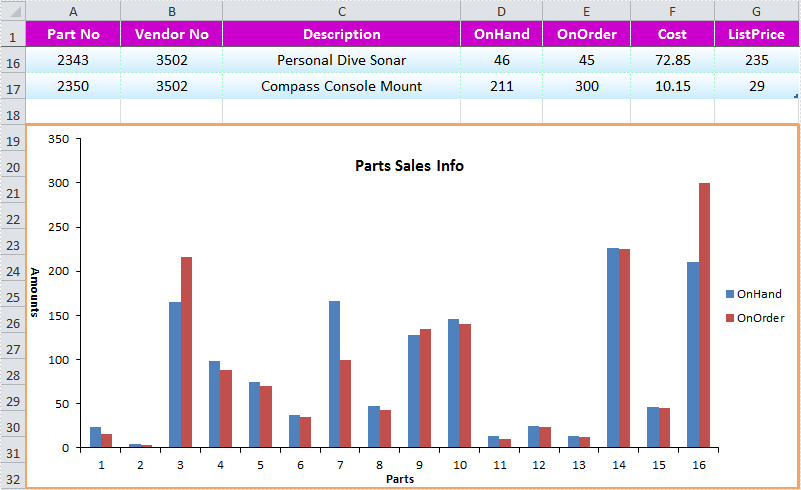

The following screenshot shows the result of Excel column chart generation.



Generate Excel Column Chart



Download and install Spire.XLS for .NET. Use the following code to generate Excel column chart.
[C#]
using System.Drawing;
using Spire.Xls;

namespace XLSTest
{
    class Program
    {
        static void Main(string[] args)
        {
            //Load Workbook
            Workbook workbook = new Workbook();
            workbook.LoadFromFile(@"E:\Work\Documents\ExcelFiles\PartSalesInfo.xlsx");
            Worksheet sheet = workbook.Worksheets[0];

            //Add Chart and Set Chart Data Range
            Chart chart = sheet.Charts.Add(ExcelChartType.ColumnClustered);
            chart.DataRange = sheet.Range["D1:E17"];
            chart.SeriesDataFromRange = false;

            //Chart Position
            chart.LeftColumn = 1;
            chart.TopRow = 19;
            chart.RightColumn = 8;
            chart.BottomRow = 33;

            //Chart Border
            chart.ChartArea.Border.Weight = ChartLineWeightType.Medium;
            chart.ChartArea.Border.Color = Color.SandyBrown;

            //Chart Title
            chart.ChartTitle = "Parts Sales Info";
            chart.ChartTitleArea.Font.FontName = "Calibri";
            chart.ChartTitleArea.Font.Size = 13;
            chart.ChartTitleArea.Font.IsBold = true;

            //Chart Axes
            chart.PrimaryCategoryAxis.Title = "Parts";
            chart.PrimaryCategoryAxis.Font.Color = Color.Blue;

            chart.PrimaryValueAxis.Title = "Amounts";
            chart.PrimaryValueAxis.HasMajorGridLines = false;
            chart.PrimaryValueAxis.MaxValue = 350;
            chart.PrimaryValueAxis.TitleArea.TextRotationAngle = 90;

            //Chart Legend
            chart.Legend.Position = LegendPositionType.Right;

            //Save and Launch
            workbook.SaveToFile("ExcelColumnChart.xlsx",ExcelVersion.Version2010);
            System.Diagnostics.Process.Start("ExcelColumnChart.xlsx");

        }
    }
}



[VB.NET]
Imports System.Drawing
Imports Spire.Xls

Namespace XLSTest
    Friend Class Program
        Shared Sub Main(ByVal args() As String)
            'Load Workbook
            Dim workbook As New Workbook()
            workbook.LoadFromFile("E:\Work\Documents\ExcelFiles\PartSalesInfo.xlsx")
            Dim sheet As Worksheet = workbook.Worksheets(0)

            'Add Chart and Set Chart Data Range
            Dim chart As Chart = sheet.Charts.Add(ExcelChartType.ColumnClustered)
            chart.DataRange = sheet.Range("D1:E17")
            chart.SeriesDataFromRange = False

            'Chart Position
            chart.LeftColumn = 1
            chart.TopRow = 19
            chart.RightColumn = 8
            chart.BottomRow = 33

            'Chart Border
            chart.ChartArea.Border.Weight = ChartLineWeightType.Medium
            chart.ChartArea.Border.Color = Color.SandyBrown

            'Chart Title
            chart.ChartTitle = "Parts Sales Info"
            chart.ChartTitleArea.Font.FontName = "Calibri"
            chart.ChartTitleArea.Font.Size = 13
            chart.ChartTitleArea.Font.IsBold = True

            'Chart Axes
            chart.PrimaryCategoryAxis.Title = "Parts"
            chart.PrimaryCategoryAxis.Font.Color = Color.Blue

            chart.PrimaryValueAxis.Title = "Amounts"
            chart.PrimaryValueAxis.HasMajorGridLines = False
            chart.PrimaryValueAxis.MaxValue = 350
            chart.PrimaryValueAxis.TitleArea.TextRotationAngle = 90

            'Chart Legend
            chart.Legend.Position = LegendPositionType.Right

            'Save and Launch
            workbook.SaveToFile("ExcelColumnChart.xlsx", ExcelVersion.Version2010)
            System.Diagnostics.Process.Start("ExcelColumnChart.xlsx")

        End Sub
    End Class
End Namespace



Spire.XLS is a powerful Excel component which enables developers/programmers to fast generate, open, view, edit, save and print Excel files for .NET, Silverlight and WPF. It supports C#, VB.NET, ASP.NET, ASP.NET MVC and Silverlight.
