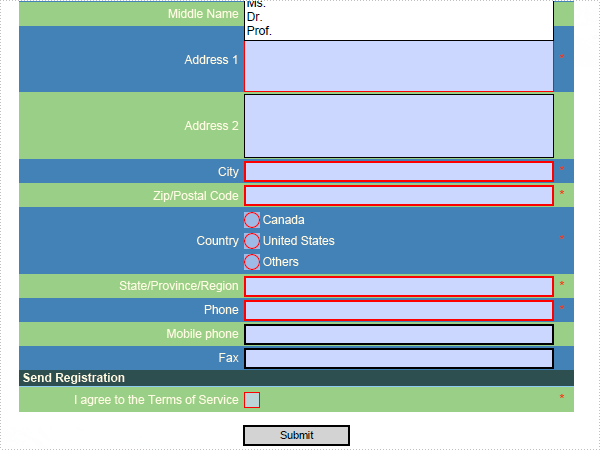

The sample demonstrates how to work with form, text box, check box, radio button, list box, combo box, button and form action in PDF document.

Download FormField.pdf

using System;
using System.Drawing;
using System.IO;
using System.Xml.XPath;
using Spire.Pdf;
using Spire.Pdf.Actions;
using Spire.Pdf.AutomaticFields;
using Spire.Pdf.Fields;
using Spire.Pdf.Graphics;

namespace FormField
{
    class Program
    {
        static void Main(string[] args)
        {
            //Create a pdf document.
            PdfDocument doc = new PdfDocument();

            //margin
            PdfUnitConvertor unitCvtr = new PdfUnitConvertor();
            PdfMargins margin = new PdfMargins();
            margin.Top = unitCvtr.ConvertUnits(2.54f, PdfGraphicsUnit.Centimeter, PdfGraphicsUnit.Point);
            margin.Bottom = margin.Top;
            margin.Left = unitCvtr.ConvertUnits(3.17f, PdfGraphicsUnit.Centimeter, PdfGraphicsUnit.Point);
            margin.Right = margin.Left;

            SetDocumentTemplate(doc, PdfPageSize.A4, margin);

            // Create one page
            PdfPageBase page = doc.Pages.Add(PdfPageSize.A4, new PdfMargins(0));

            float y = 0;

            //title
            y = DrawPageTitle(page, y);

            //load form config data
            using (Stream stream = File.OpenRead(@"Form.xml"))
            {
                XPathDocument xpathDoc = new XPathDocument(stream);
                XPathNodeIterator sectionNodes = xpathDoc.CreateNavigator().Select("/form/section");
                int fieldIndex = 0;
                foreach (XPathNavigator sectionNode in sectionNodes)
                {
                    //draw section label
                    String sectionLabel = sectionNode.GetAttribute("name", "");
                    y = DrawFormSection(sectionLabel, page, y);

                    XPathNodeIterator fieldNodes = sectionNode.Select("field");
                    foreach (XPathNavigator fieldNode in fieldNodes)
                    {
                        y = DrawFormField(fieldNode, doc.Form, page, y, fieldIndex++);
                    }
                }
            }

            //draw button
            y = y + 10;
            float buttonWidth = 80;
            float buttonX = (page.Canvas.ClientSize.Width - buttonWidth) / 2;
            RectangleF buttonBounds = new RectangleF(buttonX, y, buttonWidth, 16f);
            PdfButtonField button = new PdfButtonField(page, "submit");
            button.Text = "Submit";
            button.Bounds = buttonBounds;
            PdfSubmitAction submitAction = new PdfSubmitAction("http://www.e-iceblue.com");
            button.Actions.MouseUp = submitAction;
            doc.Form.Fields.Add(button);

            //Save pdf file.
            doc.SaveToFile("FormField.pdf");
            doc.Close();

            //Launching the Pdf file.
            System.Diagnostics.Process.Start("FormField.pdf");
        }
        private static void SetDocumentTemplate(PdfDocument doc, SizeF pageSize, PdfMargins margin)
        {
            PdfPageTemplateElement leftSpace
                = new PdfPageTemplateElement(margin.Left, pageSize.Height);
            doc.Template.Left = leftSpace;

            PdfPageTemplateElement topSpace
                = new PdfPageTemplateElement(pageSize.Width, margin.Top);
            topSpace.Foreground = true;
            doc.Template.Top = topSpace;

            //draw header label
            PdfTrueTypeFont font = new PdfTrueTypeFont(new Font("Arial", 9f, FontStyle.Italic));
            PdfStringFormat format = new PdfStringFormat(PdfTextAlignment.Right);
            String label = "Demo of Spire.Pdf";
            SizeF size = font.MeasureString(label, format);
            float y = topSpace.Height - font.Height - 1;
            PdfPen pen = new PdfPen(Color.Black, 0.75f);
            topSpace.Graphics.SetTransparency(0.5f);
            topSpace.Graphics.DrawLine(pen, margin.Left, y, pageSize.Width - margin.Right, y);
            y = y - 1 - size.Height;
            topSpace.Graphics.DrawString(label, font, PdfBrushes.Black, pageSize.Width - margin.Right, y, format);

            PdfPageTemplateElement rightSpace
                = new PdfPageTemplateElement(margin.Right, pageSize.Height);
            doc.Template.Right = rightSpace;

            PdfPageTemplateElement bottomSpace
                = new PdfPageTemplateElement(pageSize.Width, margin.Bottom);
            bottomSpace.Foreground = true;
            doc.Template.Bottom = bottomSpace;

            //draw footer label
            y = font.Height + 1;
            bottomSpace.Graphics.SetTransparency(0.5f);
            bottomSpace.Graphics.DrawLine(pen, margin.Left, y, pageSize.Width - margin.Right, y);
            y = y + 1;
            PdfPageNumberField pageNumber = new PdfPageNumberField();
            PdfPageCountField pageCount = new PdfPageCountField();
            PdfCompositeField pageNumberLabel = new PdfCompositeField();
            pageNumberLabel.AutomaticFields
                = new PdfAutomaticField[] { pageNumber, pageCount };
            pageNumberLabel.Brush = PdfBrushes.Black;
            pageNumberLabel.Font = font;
            pageNumberLabel.StringFormat = format;
            pageNumberLabel.Text = "page {0} of {1}";
            pageNumberLabel.Draw(bottomSpace.Graphics, pageSize.Width - margin.Right, y);

            PdfImage headerImage
                = PdfImage.FromFile(@"Header.png");
            PointF pageLeftTop = new PointF(-margin.Left, -margin.Top);
            PdfPageTemplateElement header = new PdfPageTemplateElement(pageLeftTop, headerImage.PhysicalDimension);
            header.Foreground = false;
            header.Graphics.SetTransparency(0.5f);
            header.Graphics.DrawImage(headerImage, 0, 0);
            doc.Template.Stamps.Add(header);

            PdfImage footerImage
                = PdfImage.FromFile(@"Footer.png");
            y = pageSize.Height - footerImage.PhysicalDimension.Height;
            PointF footerLocation = new PointF(-margin.Left, y);
            PdfPageTemplateElement footer = new PdfPageTemplateElement(footerLocation, footerImage.PhysicalDimension);
            footer.Foreground = false;
            footer.Graphics.SetTransparency(0.5f);
            footer.Graphics.DrawImage(footerImage, 0, 0);
            doc.Template.Stamps.Add(footer);
        }

        private static float DrawPageTitle(PdfPageBase page, float y)
        {
            PdfBrush brush1 = PdfBrushes.MidnightBlue;
            PdfBrush brush2 = PdfBrushes.Red;
            PdfTrueTypeFont font1 = new PdfTrueTypeFont(new Font("Arial", 12f, FontStyle.Bold));
            String title = "Your Account Information(* = Required)";
            SizeF size = font1.MeasureString(title);
            float x = (page.Canvas.ClientSize.Width - size.Width) / 2;
            page.Canvas.DrawString("Your Account Information(", font1, brush1, x, y);
            size = font1.MeasureString("Your Account Information(");
            x = x + size.Width;
            page.Canvas.DrawString("* = Required", font1, brush2, x, y);
            size = font1.MeasureString("* = Required");
            x = x + size.Width;
            page.Canvas.DrawString(")", font1, brush1, x, y);
            y = y + size.Height;

            y = y + 3;
            PdfTrueTypeFont font2 = new PdfTrueTypeFont(new Font("Arial", 8f, FontStyle.Italic));
            String p = "Your information is not public, shared in anyway, or displayed on this site.";
            page.Canvas.DrawString(p, font2, brush1, 0, y);

            return y + font2.Height;
        }

        private static float DrawFormSection(String label, PdfPageBase page, float y)
        {
            PdfBrush brush1 = PdfBrushes.LightYellow;
            PdfBrush brush2 = PdfBrushes.DarkSlateGray;
            PdfTrueTypeFont font = new PdfTrueTypeFont(new Font("Arial", 9f, FontStyle.Bold));
            PdfStringFormat format = new PdfStringFormat();
            float height = font.MeasureString(label).Height;
            page.Canvas.DrawRectangle(brush2, 0, y, page.Canvas.ClientSize.Width, height + 2);
            page.Canvas.DrawString(label, font, brush1, 2, y + 1);
            y = y + height + 2;
            PdfPen pen = new PdfPen(PdfBrushes.LightSkyBlue, 0.75f);
            page.Canvas.DrawLine(pen, 0, y, page.Canvas.ClientSize.Width, y);
            return y + 0.75f;
        }

        private static float DrawFormField(XPathNavigator fieldNode, PdfForm form, PdfPageBase page, float y, int fieldIndex)
        {
            float width = page.Canvas.ClientSize.Width;
            float padding = 2;

            //measure field label
            String label = fieldNode.GetAttribute("label", "");
            PdfTrueTypeFont font1 = new PdfTrueTypeFont(new Font("Arial", 9f));
            PdfStringFormat format = new PdfStringFormat(PdfTextAlignment.Right, PdfVerticalAlignment.Middle);
            float labelMaxWidth = width * 0.4f - 2 * padding;
            SizeF labelSize = font1.MeasureString(label, labelMaxWidth, format);

            //measure field height
            float fieldHeight = MeasureFieldHeight(fieldNode);

            float height = labelSize.Height > fieldHeight ? labelSize.Height : fieldHeight;
            height = height + 2;

            //draw background
            PdfBrush brush = PdfBrushes.SteelBlue;
            if (fieldIndex % 2 == 1)
            {
                brush = PdfBrushes.LightGreen;
            }
            page.Canvas.DrawRectangle(brush, 0, y, width, height);

            //draw field label
            PdfBrush brush1 = PdfBrushes.LightYellow;
            RectangleF labelBounds = new RectangleF(padding, y, labelMaxWidth, height);
            page.Canvas.DrawString(label, font1, brush1, labelBounds, format);

            //daw field
            float fieldMaxWidth = width * 0.57f - 2 * padding;
            float fieldX = labelBounds.Right + 2 * padding;
            float fieldY = y + (height - fieldHeight) / 2;
            String fieldType = fieldNode.GetAttribute("type", "");
            String fieldId = fieldNode.GetAttribute("id", "");
            bool required = "true" == fieldNode.GetAttribute("required", "");
            switch (fieldType)
            {
                case "text":
                case "password":
                    PdfTextBoxField textField = new PdfTextBoxField(page, fieldId);
                    textField.Bounds = new RectangleF(fieldX, fieldY, fieldMaxWidth, fieldHeight);
                    textField.BorderWidth = 0.75f;
                    textField.BorderStyle = PdfBorderStyle.Solid;
                    textField.Required = required;
                    if ("password" == fieldType)
                    {
                        textField.Password = true;
                    }
                    if ("true" == fieldNode.GetAttribute("multiple", ""))
                    {
                        textField.Multiline = true;
                        textField.Scrollable = true;
                    }
                    form.Fields.Add(textField);
                    break;
                case "checkbox":
                    PdfCheckBoxField checkboxField = new PdfCheckBoxField(page, fieldId);
                    float checkboxWidth = fieldHeight - 2 * padding;
                    float checkboxHeight = checkboxWidth;
                    checkboxField.Bounds = new RectangleF(fieldX, fieldY + padding, checkboxWidth, checkboxHeight);
                    checkboxField.BorderWidth = 0.75f;
                    checkboxField.Style = PdfCheckBoxStyle.Cross;
                    checkboxField.Required = required;
                    form.Fields.Add(checkboxField);
                    break;

                case "list":
                    XPathNodeIterator itemNodes = fieldNode.Select("item");
                    if ("true" == fieldNode.GetAttribute("multiple", ""))
                    {
                        PdfListBoxField listBoxField = new PdfListBoxField(page, fieldId);
                        listBoxField.Bounds = new RectangleF(fieldX, fieldY, fieldMaxWidth, fieldHeight);
                        listBoxField.BorderWidth = 0.75f;
                        listBoxField.MultiSelect = true;
                        listBoxField.Font = new PdfFont(PdfFontFamily.Helvetica, 9f);
                        listBoxField.Required = required;
                        //add items into list box.
                        foreach (XPathNavigator itemNode in itemNodes)
                        {
                            String text = itemNode.SelectSingleNode("text()").Value;
                            listBoxField.Items.Add(new PdfListFieldItem(text, text));
                        }
                        listBoxField.SelectedIndex = 0;
                        form.Fields.Add(listBoxField);

                        break;
                    }
                    if (itemNodes != null && itemNodes.Count <= 3)
                    {
                        PdfRadioButtonListField radioButtonListFile
                            = new PdfRadioButtonListField(page, fieldId);
                        radioButtonListFile.Required = required;
                        //add items into radio button list.
                        float fieldItemHeight = fieldHeight / itemNodes.Count;
                        float radioButtonWidth = fieldItemHeight - 2 * padding;
                        float radioButtonHeight = radioButtonWidth;
                        foreach (XPathNavigator itemNode in itemNodes)
                        {
                            String text = itemNode.SelectSingleNode("text()").Value;
                            PdfRadioButtonListItem fieldItem = new PdfRadioButtonListItem(text);
                            fieldItem.BorderWidth = 0.75f;
                            fieldItem.Bounds = new RectangleF(fieldX, fieldY + padding, radioButtonWidth, radioButtonHeight);
                            radioButtonListFile.Items.Add(fieldItem);

                            float fieldItemLabelX = fieldX + radioButtonWidth + padding;
                            SizeF fieldItemLabelSize = font1.MeasureString(text);
                            float fieldItemLabelY = fieldY + (fieldItemHeight - fieldItemLabelSize.Height) / 2;
                            page.Canvas.DrawString(text, font1, brush1, fieldItemLabelX, fieldItemLabelY);

                            fieldY = fieldY + fieldItemHeight;
                        }
                        form.Fields.Add(radioButtonListFile);

                        break;
                    }

                    //combo box
                    PdfComboBoxField comboBoxField = new PdfComboBoxField(page, fieldId);
                    comboBoxField.Bounds = new RectangleF(fieldX, fieldY, fieldMaxWidth, fieldHeight);
                    comboBoxField.BorderWidth = 0.75f;
                    comboBoxField.Font = new PdfFont(PdfFontFamily.Helvetica, 9f);
                    comboBoxField.Required = required;
                    //add items into combo box.
                    foreach (XPathNavigator itemNode in itemNodes)
                    {
                        String text = itemNode.SelectSingleNode("text()").Value;
                        comboBoxField.Items.Add(new PdfListFieldItem(text, text));
                    }
                    form.Fields.Add(comboBoxField);
                    break;

            }

            if (required)
            {
                //draw *
                float flagX = width * 0.97f + padding;
                PdfTrueTypeFont font3 = new PdfTrueTypeFont(new Font("Arial", 10f, FontStyle.Bold));
                SizeF size = font3.MeasureString("*");
                float flagY = y + (height - size.Height) / 2;
                page.Canvas.DrawString("*", font3, PdfBrushes.Red, flagX, flagY);
            }

            return y + height;
        }

        private static float MeasureFieldHeight(XPathNavigator fieldNode)
        {
            String fieldType = fieldNode.GetAttribute("type", "");
            float defaultHeight = 16f;
            switch (fieldType)
            {
                case "text":
                case "password":
                    if ("true" == fieldNode.GetAttribute("multiple", ""))
                    {
                        return defaultHeight * 3;
                    }
                    return defaultHeight;

                case "checkbox":
                    return defaultHeight;

                case "list":
                    if ("true" == fieldNode.GetAttribute("multiple", ""))
                    {
                        return defaultHeight * 3;
                    }
                    XPathNodeIterator itemNodes = fieldNode.Select("item");
                    if (itemNodes != null && itemNodes.Count <= 3)
                    {
                        return defaultHeight * 3;
                    }
                    return defaultHeight;

            }
            String message = String.Format("Invalid field type: {0}", fieldType);
            throw new ArgumentException(message);
        }
    }
}

Imports System.Drawing
Imports System.IO
Imports System.Xml.XPath
Imports Spire.Pdf
Imports Spire.Pdf.Actions
Imports Spire.Pdf.AutomaticFields
Imports Spire.Pdf.Fields
Imports Spire.Pdf.Graphics

Namespace FormField
    Friend Class Program
        Shared Sub Main(ByVal args() As String)
            'Create a pdf document.
            Dim doc As New PdfDocument()

            'margin
            Dim unitCvtr As New PdfUnitConvertor()
            Dim margin As New PdfMargins()
            margin.Top = unitCvtr.ConvertUnits(2.54F, PdfGraphicsUnit.Centimeter, PdfGraphicsUnit.Point)
            margin.Bottom = margin.Top
            margin.Left = unitCvtr.ConvertUnits(3.17F, PdfGraphicsUnit.Centimeter, PdfGraphicsUnit.Point)
            margin.Right = margin.Left

            SetDocumentTemplate(doc, PdfPageSize.A4, margin)

            ' Create one page
            Dim page As PdfPageBase = doc.Pages.Add(PdfPageSize.A4, New PdfMargins(0))

            Dim y As Single = 0

            'title
            y = DrawPageTitle(page, y)

            'load form config data
            Using stream As Stream = File.OpenRead("Form.xml")
                Dim xpathDoc As New XPathDocument(stream)
                Dim sectionNodes As XPathNodeIterator = xpathDoc.CreateNavigator().Select("/form/section")
                Dim fieldIndex As Integer = 0
                For Each sectionNode As XPathNavigator In sectionNodes
                    'draw section label
                    Dim sectionLabel As String = sectionNode.GetAttribute("name", "")
                    y = DrawFormSection(sectionLabel, page, y)

                    Dim fieldNodes As XPathNodeIterator = sectionNode.Select("field")
                    For Each fieldNode As XPathNavigator In fieldNodes
                        y = DrawFormField(fieldNode, doc.Form, page, y, fieldIndex)
                        fieldIndex += 1
                    Next fieldNode
                Next sectionNode
            End Using

            'draw button
            y = y + 10
            Dim buttonWidth As Single = 80
            Dim buttonX As Single = (page.Canvas.ClientSize.Width - buttonWidth) / 2
            Dim buttonBounds As New RectangleF(buttonX, y, buttonWidth, 16.0F)
            Dim button As New PdfButtonField(page, "submit")
            button.Text = "Submit"
            button.Bounds = buttonBounds
            Dim submitAction As New PdfSubmitAction("http://www.e-iceblue.com")
            button.Actions.MouseUp = submitAction
            doc.Form.Fields.Add(button)

            'Save pdf file.
            doc.SaveToFile("FormField.pdf")
            doc.Close()

            'Launching the Pdf file.
            Process.Start("FormField.pdf")
        End Sub
        Private Shared Sub SetDocumentTemplate(ByVal doc As PdfDocument, ByVal pageSize As SizeF, _
                                               ByVal margin As PdfMargins)
            Dim leftSpace As New PdfPageTemplateElement(margin.Left, pageSize.Height)
            doc.Template.Left = leftSpace

            Dim topSpace As New PdfPageTemplateElement(pageSize.Width, margin.Top)
            topSpace.Foreground = True
            doc.Template.Top = topSpace

            'draw header label
            Dim font As New PdfTrueTypeFont(New Font("Arial", 9.0F, FontStyle.Italic))
            Dim format As New PdfStringFormat(PdfTextAlignment.Right)
            Dim label As String = "Demo of Spire.Pdf"
            Dim size As SizeF = font.MeasureString(label, format)
            Dim y As Single = topSpace.Height - font.Height - 1
            Dim pen As New PdfPen(Color.Black, 0.75F)
            topSpace.Graphics.SetTransparency(0.5F)
            topSpace.Graphics.DrawLine(pen, margin.Left, y, pageSize.Width - margin.Right, y)
            y = y - 1 - size.Height
            topSpace.Graphics.DrawString(label, font, PdfBrushes.Black, pageSize.Width - margin.Right, y, format)

            Dim rightSpace As New PdfPageTemplateElement(margin.Right, pageSize.Height)
            doc.Template.Right = rightSpace

            Dim bottomSpace As New PdfPageTemplateElement(pageSize.Width, margin.Bottom)
            bottomSpace.Foreground = True
            doc.Template.Bottom = bottomSpace

            'draw footer label
            y = font.Height + 1
            bottomSpace.Graphics.SetTransparency(0.5F)
            bottomSpace.Graphics.DrawLine(pen, margin.Left, y, pageSize.Width - margin.Right, y)
            y = y + 1
            Dim pageNumber As New PdfPageNumberField()
            Dim pageCount As New PdfPageCountField()
            Dim pageNumberLabel As New PdfCompositeField()
            pageNumberLabel.AutomaticFields = New PdfAutomaticField() {pageNumber, pageCount}
            pageNumberLabel.Brush = PdfBrushes.Black
            pageNumberLabel.Font = font
            pageNumberLabel.StringFormat = format
            pageNumberLabel.Text = "page {0} of {1}"
            pageNumberLabel.Draw(bottomSpace.Graphics, pageSize.Width - margin.Right, y)

            Dim headerImage As PdfImage = PdfImage.FromFile("Header.png")
            Dim pageLeftTop As New PointF(-margin.Left, -margin.Top)
            Dim header As New PdfPageTemplateElement(pageLeftTop, headerImage.PhysicalDimension)
            header.Foreground = False
            header.Graphics.SetTransparency(0.5F)
            header.Graphics.DrawImage(headerImage, 0, 0)
            doc.Template.Stamps.Add(header)

            Dim footerImage As PdfImage = PdfImage.FromFile("Footer.png")
            y = pageSize.Height - footerImage.PhysicalDimension.Height
            Dim footerLocation As New PointF(-margin.Left, y)
            Dim footer As New PdfPageTemplateElement(footerLocation, footerImage.PhysicalDimension)
            footer.Foreground = False
            footer.Graphics.SetTransparency(0.5F)
            footer.Graphics.DrawImage(footerImage, 0, 0)
            doc.Template.Stamps.Add(footer)
        End Sub

        Private Shared Function DrawPageTitle(ByVal page As PdfPageBase, ByVal y As Single) As Single
            Dim brush1 As PdfBrush = PdfBrushes.MidnightBlue
            Dim brush2 As PdfBrush = PdfBrushes.Red
            Dim font1 As New PdfTrueTypeFont(New Font("Arial", 12.0F, FontStyle.Bold))
            Dim title As String = "Your Account Information(* = Required)"
            Dim size As SizeF = font1.MeasureString(title)
            Dim x As Single = (page.Canvas.ClientSize.Width - size.Width) / 2
            page.Canvas.DrawString("Your Account Information(", font1, brush1, x, y)
            size = font1.MeasureString("Your Account Information(")
            x = x + size.Width
            page.Canvas.DrawString("* = Required", font1, brush2, x, y)
            size = font1.MeasureString("* = Required")
            x = x + size.Width
            page.Canvas.DrawString(")", font1, brush1, x, y)
            y = y + size.Height

            y = y + 3
            Dim font2 As New PdfTrueTypeFont(New Font("Arial", 8.0F, FontStyle.Italic))
            Dim p As String = "Your information is not public, shared in anyway, or displayed on this site."
            page.Canvas.DrawString(p, font2, brush1, 0, y)

            Return y + font2.Height
        End Function

        Private Shared Function DrawFormSection(ByVal label As String, ByVal page As PdfPageBase, _
                                                ByVal y As Single) As Single
            Dim brush1 As PdfBrush = PdfBrushes.LightYellow
            Dim brush2 As PdfBrush = PdfBrushes.DarkSlateGray
            Dim font As New PdfTrueTypeFont(New Font("Arial", 9.0F, FontStyle.Bold))
            Dim format As New PdfStringFormat()
            Dim height As Single = font.MeasureString(label).Height
            page.Canvas.DrawRectangle(brush2, 0, y, page.Canvas.ClientSize.Width, height + 2)
            page.Canvas.DrawString(label, font, brush1, 2, y + 1)
            y = y + height + 2
            Dim pen As New PdfPen(PdfBrushes.LightSkyBlue, 0.75F)
            page.Canvas.DrawLine(pen, 0, y, page.Canvas.ClientSize.Width, y)
            Return y + 0.75F
        End Function

        Private Shared Function DrawFormField(ByVal fieldNode As XPathNavigator, ByVal form As PdfForm, _
                    ByVal page As PdfPageBase, ByVal y As Single, ByVal fieldIndex As Integer) As Single
            Dim width As Single = page.Canvas.ClientSize.Width
            Dim padding As Single = 2

            'measure field label
            Dim label As String = fieldNode.GetAttribute("label", "")
            Dim font1 As New PdfTrueTypeFont(New Font("Arial", 9.0F))
            Dim format As New PdfStringFormat(PdfTextAlignment.Right, PdfVerticalAlignment.Middle)
            Dim labelMaxWidth As Single = width * 0.4F - 2 * padding
            Dim labelSize As SizeF = font1.MeasureString(label, labelMaxWidth, format)

            'measure field height
            Dim fieldHeight As Single = MeasureFieldHeight(fieldNode)

            Dim height As Single = If(labelSize.Height > fieldHeight, labelSize.Height, fieldHeight)
            height = height + 2

            'draw background
            Dim brush As PdfBrush = PdfBrushes.SteelBlue
            If fieldIndex Mod 2 = 1 Then
                brush = PdfBrushes.LightGreen
            End If
            page.Canvas.DrawRectangle(brush, 0, y, width, height)

            'draw field label
            Dim brush1 As PdfBrush = PdfBrushes.LightYellow
            Dim labelBounds As New RectangleF(padding, y, labelMaxWidth, height)
            page.Canvas.DrawString(label, font1, brush1, labelBounds, format)

            'daw field
            Dim fieldMaxWidth As Single = width * 0.57F - 2 * padding
            Dim fieldX As Single = labelBounds.Right + 2 * padding
            Dim fieldY As Single = y + (height - fieldHeight) / 2
            Dim fieldType As String = fieldNode.GetAttribute("type", "")
            Dim fieldId As String = fieldNode.GetAttribute("id", "")
            Dim required As Boolean = "true" = fieldNode.GetAttribute("required", "")
            Select Case fieldType
                Case "text", "password"
                    Dim textField As New PdfTextBoxField(page, fieldId)
                    textField.Bounds = New RectangleF(fieldX, fieldY, fieldMaxWidth, fieldHeight)
                    textField.BorderWidth = 0.75F
                    textField.BorderStyle = PdfBorderStyle.Solid
                    textField.Required = required
                    If "password" = fieldType Then
                        textField.Password = True
                    End If
                    If "true" = fieldNode.GetAttribute("multiple", "") Then
                        textField.Multiline = True
                        textField.Scrollable = True
                    End If
                    form.Fields.Add(textField)
                Case "checkbox"
                    Dim checkboxField As New PdfCheckBoxField(page, fieldId)
                    Dim checkboxWidth As Single = fieldHeight - 2 * padding
                    Dim checkboxHeight As Single = checkboxWidth
                    checkboxField.Bounds = New RectangleF(fieldX, fieldY + padding, checkboxWidth, checkboxHeight)
                    checkboxField.BorderWidth = 0.75F
                    checkboxField.Style = PdfCheckBoxStyle.Cross
                    checkboxField.Required = required
                    form.Fields.Add(checkboxField)

                Case "list"
                    Dim itemNodes As XPathNodeIterator = fieldNode.Select("item")
                    If "true" = fieldNode.GetAttribute("multiple", "") Then
                        Dim listBoxField As New PdfListBoxField(page, fieldId)
                        listBoxField.Bounds = New RectangleF(fieldX, fieldY, fieldMaxWidth, fieldHeight)
                        listBoxField.BorderWidth = 0.75F
                        listBoxField.MultiSelect = True
                        listBoxField.Font = New PdfFont(PdfFontFamily.Helvetica, 9.0F)
                        listBoxField.Required = required
                        'add items into list box.
                        For Each itemNode As XPathNavigator In itemNodes
                            Dim text As String = itemNode.SelectSingleNode("text()").Value
                            listBoxField.Items.Add(New PdfListFieldItem(text, text))
                        Next itemNode
                        listBoxField.SelectedIndex = 0
                        form.Fields.Add(listBoxField)

                        Exit Select
                    End If
                    If itemNodes IsNot Nothing AndAlso itemNodes.Count <= 3 Then
                        Dim radioButtonListFile As New PdfRadioButtonListField(page, fieldId)
                        radioButtonListFile.Required = required
                        'add items into radio button list.
                        Dim fieldItemHeight As Single = fieldHeight / itemNodes.Count
                        Dim radioButtonWidth As Single = fieldItemHeight - 2 * padding
                        Dim radioButtonHeight As Single = radioButtonWidth
                        For Each itemNode As XPathNavigator In itemNodes
                            Dim text As String = itemNode.SelectSingleNode("text()").Value
                            Dim fieldItem As New PdfRadioButtonListItem(text)
                            fieldItem.BorderWidth = 0.75F
                            fieldItem.Bounds = New RectangleF(fieldX, fieldY + padding, radioButtonWidth, radioButtonHeight)
                            radioButtonListFile.Items.Add(fieldItem)

                            Dim fieldItemLabelX As Single = fieldX + radioButtonWidth + padding
                            Dim fieldItemLabelSize As SizeF = font1.MeasureString(text)
                            Dim fieldItemLabelY As Single = fieldY + (fieldItemHeight - fieldItemLabelSize.Height) / 2
                            page.Canvas.DrawString(text, font1, brush1, fieldItemLabelX, fieldItemLabelY)

                            fieldY = fieldY + fieldItemHeight
                        Next itemNode
                        form.Fields.Add(radioButtonListFile)

                        Exit Select
                    End If

                    'combo box
                    Dim comboBoxField As New PdfComboBoxField(page, fieldId)
                    comboBoxField.Bounds = New RectangleF(fieldX, fieldY, fieldMaxWidth, fieldHeight)
                    comboBoxField.BorderWidth = 0.75F
                    comboBoxField.Font = New PdfFont(PdfFontFamily.Helvetica, 9.0F)
                    comboBoxField.Required = required
                    'add items into combo box.
                    For Each itemNode As XPathNavigator In itemNodes
                        Dim text As String = itemNode.SelectSingleNode("text()").Value
                        comboBoxField.Items.Add(New PdfListFieldItem(text, text))
                    Next itemNode
                    form.Fields.Add(comboBoxField)

            End Select

            If required Then
                'draw *
                Dim flagX As Single = width * 0.97F + padding
                Dim font3 As New PdfTrueTypeFont(New Font("Arial", 10.0F, FontStyle.Bold))
                Dim size As SizeF = font3.MeasureString("*")
                Dim flagY As Single = y + (height - size.Height) / 2
                page.Canvas.DrawString("*", font3, PdfBrushes.Red, flagX, flagY)
            End If

            Return y + height
        End Function

        Private Shared Function MeasureFieldHeight(ByVal fieldNode As XPathNavigator) As Single
            Dim fieldType As String = fieldNode.GetAttribute("type", "")
            Dim defaultHeight As Single = 16.0F
            Select Case fieldType
                Case "text", "password"
                    If "true" = fieldNode.GetAttribute("multiple", "") Then
                        Return defaultHeight * 3
                    End If
                    Return defaultHeight

                Case "checkbox"
                    Return defaultHeight

                Case "list"
                    If "true" = fieldNode.GetAttribute("multiple", "") Then
                        Return defaultHeight * 3
                    End If
                    Dim itemNodes As XPathNodeIterator = fieldNode.Select("item")
                    If itemNodes IsNot Nothing AndAlso itemNodes.Count <= 3 Then
                        Return defaultHeight * 3
                    End If
                    Return defaultHeight

            End Select
            Dim message As String = String.Format("Invalid field type: {0}", fieldType)
            Throw New ArgumentException(message)
        End Function
    End Class
End Namespace
